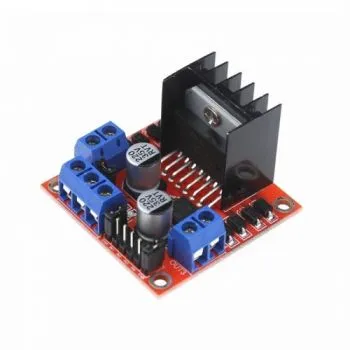

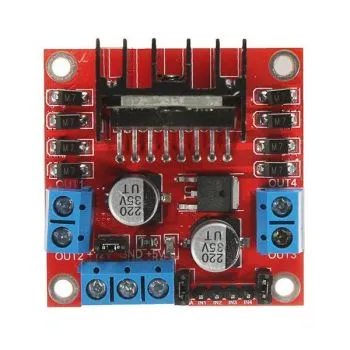

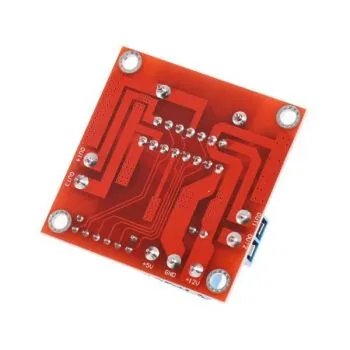

Dual Motor Driver Module L298N
Code: BCA.001
Dual motor driver module based on the L298N dual H-bridge IC, for controlling DC motors in robotics and automation projects. It accepts a +5 V to +35 V motor supply, handles 2A max average current and has an onboard 5V regulator.
4,20 €
3,80 €
Includes 24% VAT
- Free shipping over 100,00 €
- Pickup in Patras (by appointment)
- Secure payments
- Technical support
Categories: Motors & Servos
Description
Driver: L298N Dual H Bridge DC Motor Driver IC
Motor Power Supply Vs: +5 V to +35 V
Max average current: 2A
Peak current Io: 3A
Logic Level Power Vss: +5 V ~ +7 V (Onboard 5V Regulator can be used if Motor Power is > 7.0V)
Logic level power: 0 - 36mA
Logic signal input range: [ Low:-0.3V ≤ Vin ≤ 1.5V] [ High: 2.3V ≤ Vin ≤ Vss]
Maximum power dissipation: 20W (when the temperature T = 75 ℃)
Specifications
- Password
- BCA.001
- Brand
- OEM
- Weight
- 0.06 kg
