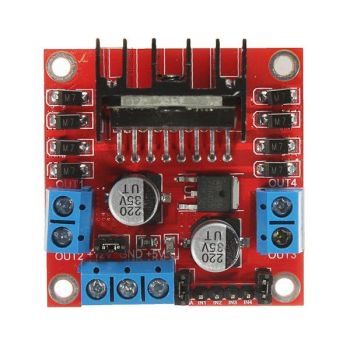

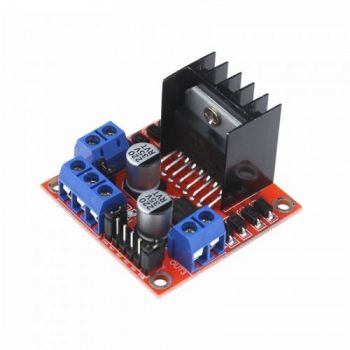

Dual Motor Driver Module L298N

Περιγραφή

Driver: L298N Dual H Bridge DC Motor Driver IC

Motor Power Supply Vs: +5 V to +35 V

Max average current: 2A

Peak current Io: 3A

Logic Level Power Vss: +5 V ~ +7 V (Onboard 5V Regulator can be used if Motor Power is > 7.0V)

Logic level power: 0 – 36mA

Logic signal input range: [ Low:-0.3V ≤ Vin ≤ 1.5V] [ High: 2.3V ≤ Vin ≤ Vss]

Maximum power dissipation: 20W (when the temperature T = 75 ℃)
