SG92R 2.5KG Micro 9g Servo Nylon Carbon fiber Gears
Code: BCE.009
TZT SG92R 9g micro servo motor with nylon carbon fiber gears. Suitable for light builds such as a CNC writer, it connects easily to Arduino and is controlled via PWM.
3,50 €
Includes 24% VAT
- Free shipping over 100,00 €
- Pickup in Patras (by appointment)
- Secure payments
- Technical support
Categories: Motors & Servos
Description
DESCRIPTION
Small servo motor for light builds such as a CNC writer. Easy connection to Arduino.
FEATURES

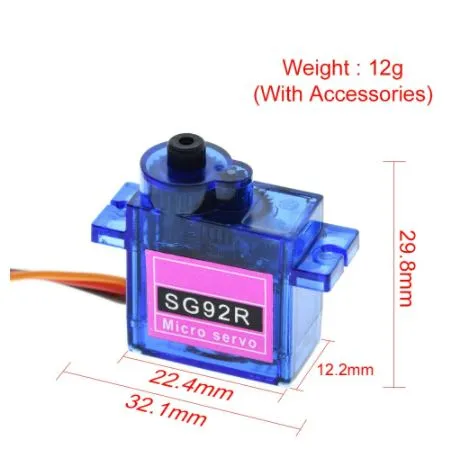

- Dimensions: 23*12.2*27mm
- Operating speed: 0.12 second/ 60 degree ( 4.8V no load)
- Torque (4.8V): 2,25 kg/cm
- Temperature range: -40 to +85
- Dead band width: 10 usec
- Operating voltage: 4.2V~6V

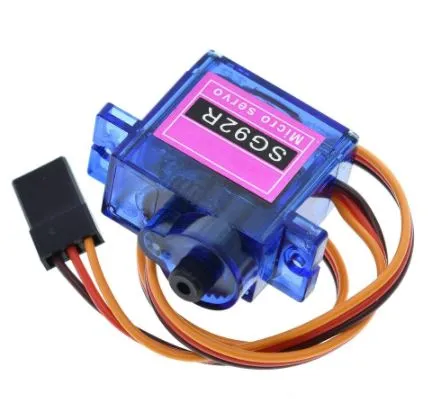

WIRING
Red (5V)
Brown (GND)
Orange (PWM)
Specifications
- Password
- BCE.009
- Brand
- TZT
- Weight
- 0.01 kg
