RF Link Transmitter and Receiver 4 Channel - 433MHz
Code: B0.001
Qiachip 4-channel 433MHz RF transmitter and receiver set with EV1527 learning code encoding, for wireless remote control. The receiver provides 4 CMOS-level outputs and supports momentary, self-locking (toggle) or interlocking modes.
4,20 €
Includes 24% VAT
- Free shipping over 100,00 €
- Pickup in Patras (by appointment)
- Secure payments
- Technical support
Categories: Bluetooth, RF & nRF
Description
SPECIFICATIONS

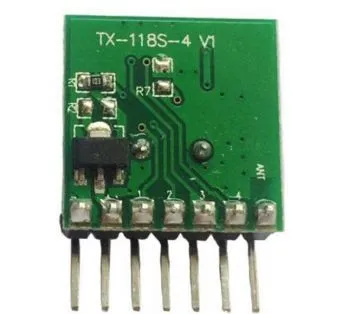

- Transmitter module: Transmitting power: 11dbm Emission current: 10mA Rate of fire: maximum 10KB / S Operating Voltage: DC 3V-24V Encoding: EV1527 1527 Learning code Each module has a unique ID address code All modules K1-K4 four key code is the same

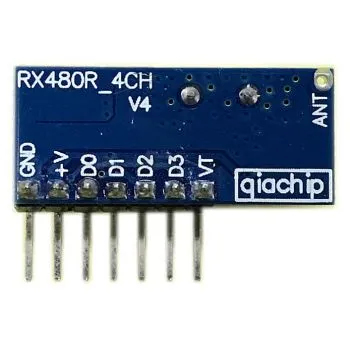

- Receiver module: Working Voltage: DC3.3~5V Quiescent Current: ≤5mA Output current: 10mA Working Frequency: 433MHz Receive Sensitivity: -108dB Working Temperature: -25~75 Working mode: Momentary Mode , self-locking (Toggle-Mode of the 4 Channels) , interlocking The output: 4 channel CMOS level signal Corresponding to the remote control ABCD 4 buttons
Specifications
- Password
- B0.001
- Μάρκα
- Qiachip
- Weight
- 0.01 kg
