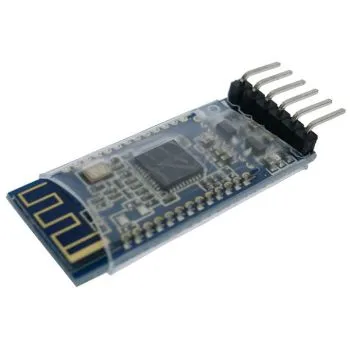

Bluetooth Module AT09
Code: B0.010
AT09 Bluetooth 4.0 BLE module with a serial (RX/TX) interface for wireless communication with microcontrollers. It runs on 3.3V or 5V and has built-in level shifting, so the RX/TX logic level matches the supply voltage.
5,90 €
Includes 24% VAT
- Free shipping over 100,00 €
- Pickup in Patras (by appointment)
- Secure payments
- Technical support
Categories: Bluetooth, RF & nRF
Description
Features:
- bluetooth 4.0 module Serial port extraction bluetooth BLE CC2540 CC2541
- The bluetooth module has a backplane, and the HM-10 module is used on this module.
- 5V power supply or 3.3V power supply. The serial port level is the same as the power supply voltage.
- Built-in level shifting function.
Specifications:
- Input voltage: 3.3V/5V
- If a 5.0V MCU is used to communicate with the bluetooth module, the 5.0V power port is powered, and the RX TX logic level is 5V.
- If a 3.3V MCU is used to communicate with the bluetooth module, the 3.3V power port is powered, and the RX TX logic level is 3.3V.

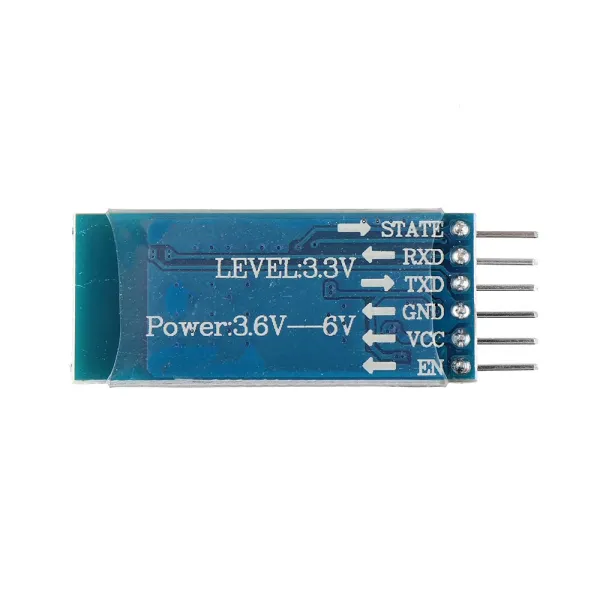

Pin:
RX, the serial port receiving end of the bluetooth module is connected to the TXD of the MCU.
TX, the serial port sender of the bluetooth module is connected to the RXD of the MCU.
GND, ground terminal negative
3.3V, 3.3V power supply at the power supply
5V, power supply 5V power supply
Package Incleded:
1 x AT-09 4.0 BLE Wireless bluetooth Module
Specifications
- Password
- B0.010
- Brand
- OEM
- Weight
- 0.01 kg
