Laser Transmitter Module KY-008
Code: A0.005
KY-008 laser transmitter module with a 650nm red laser diode and a resistor, for projects with Arduino and other microcontrollers. It operates at 5V with 5mW output power and draws less than 40mA.
1,50 €
Includes 24% VAT
- Free shipping over 100,00 €
- Pickup in Patras (by appointment)
- Secure payments
- Technical support
Categories: Colour / Light
Description

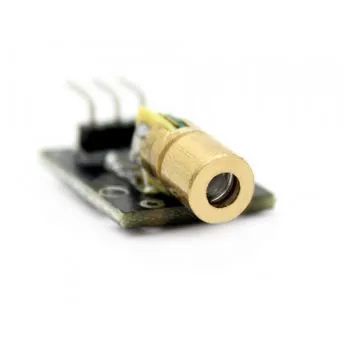

The KY-008 Laser transmitter module consists of a 650nm red laser diode head and a resistor.
- Operating Voltage 5V
- Output Power 5mW
- Wavelength 650nm
- Operating Current less than 40mA
- Working Temperature -10°C ~ 40°C [14°F to 104°F]
- Dimensions 18.5mm x 15mm [0.728in x 0.591in]
Dimensions
- Board: 18.7 x 15mm
- With pins & sensor: 27.5 x 15 x 9.5mm
- Pitch of pins: 0.079"/2mm
- Mounting holes: 4 x 2mm
Specifications
- Password
- A0.005
- Brand
- OEM
- Weight
- 0.01 kg
