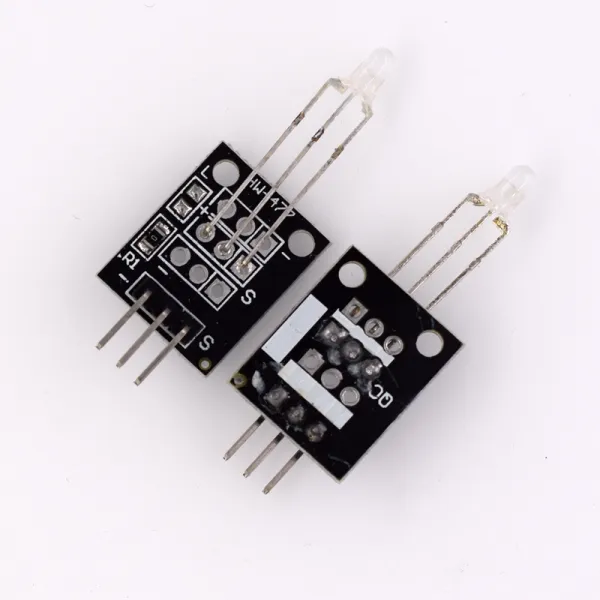

HW-477 Red and Green dual color 3mm led cathode
Code: A1.008
The HW-477 is a 3mm dual-color red and green LED with a common cathode, for status indication in circuits and Arduino projects. When connecting it to an Arduino, 330Ω resistors are recommended to limit the current.
0,60 €
Includes 24% VAT
- Free shipping over 100,00 €
- Pickup in Patras (by appointment)
- Secure payments
- Technical support
Categories: Colour / Light
Description
Operating Voltage: 2.0v ~ 2.5v
Working Current: 10mA
Diameter: 3mm
Color Red + Green
Beam Angle: 150
Wavelength: 571nm + 644nm
Luminosity Intensity (MCD): 20-40; 40-80
Use a couple of 330Ω resistors to limit the current from the Arduino and prevent burning the LED
Specifications
- Password
- A1.008
- Weight
- 0.01 kg
