Raspberry Pi Zero 2 W

Raspberry Pi Zero 2 W

The Raspberry Pi Zero 2 W is the latest product in the most affordable range of Raspberry Pi microcomputers. The Raspberry Pi Zero 2 W is the successor to the pioneering Raspberry Pi Zero W and is fully form-factor compatible, so it can replace the original Raspberry Pi Zero W.

The board features a quad-core 64-bit Arm Cortex-A53 CPU, clocked at 1GHz.

At its heart is a Raspberry Pi RP3A0 system-in-package (SiP), which integrates a Broadcom BCM2710A1 chip with 512 MB LPDDR2 SDRAM. The upgraded processor gives the Raspberry Pi Zero 2 W 40% more single-core performance and five times more multi-core performance across its four cores than the original single-core Raspberry Pi Zero.

The Raspberry Pi Zero 2 W offers 2.4 GHz 802.11 b/g/n wireless LAN and Bluetooth 4.2, along with support for Bluetooth Low Energy (BLE) and modular compliance certification.

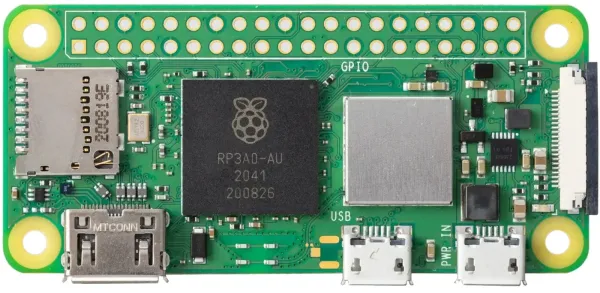

The board has a microSD card slot, a CSI-2 camera connector, a USB On-The-Go (OTG) port and a HAT-compatible 40-pin GPIO header for the Raspberry Pi.

It is powered via a micro USB connector

Video output is via a mini HDMI port.

It is the same as the original Raspberry Pi Zero and fits most existing Raspberry Pi Zero cases.

Specification

Form factor: 65mm × 30mm
Processor: Broadcom BCM2710A1, quad-core 64-bit SoC (Arm Cortex-A53 @ 1GHz)
Memory: 512MB LPDDR2
Connectivity:

• 2.4GHz IEEE 802.11b/g/n wireless LAN, Bluetooth 4.2, BLE, onboard antenna
• 1 × USB 2.0 interface with OTG
• HAT-compatible 40-pin I/O header footprint
• microSD card slot
• Mini HDMI port
• CSI-2 camera connector

Video:

• HDMI interface
• Composite video

Multimedia:

• H.264, MPEG-4 decode (1080p30)
• H.264 encode (1080p30)
• OpenGL ES 1.1, 2.0 graphics

Input power: 5V DC 2.5A

Operating temperature: -20°C to +70°C

Production lifetime: Raspberry Pi Zero 2 W will remain in production until at least January 2028
