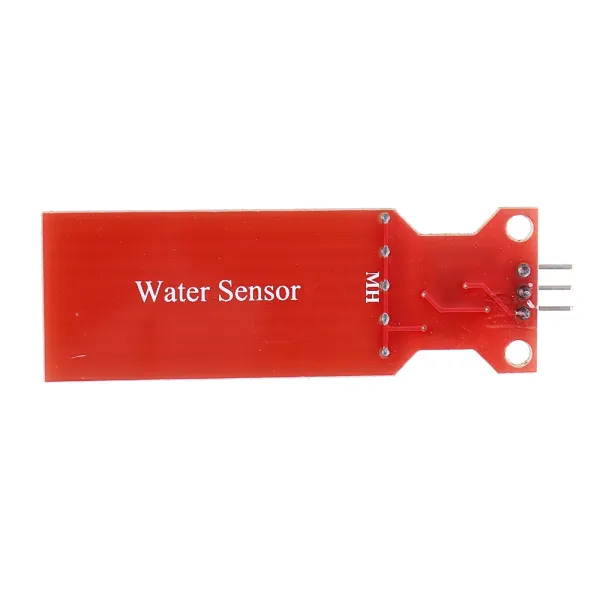

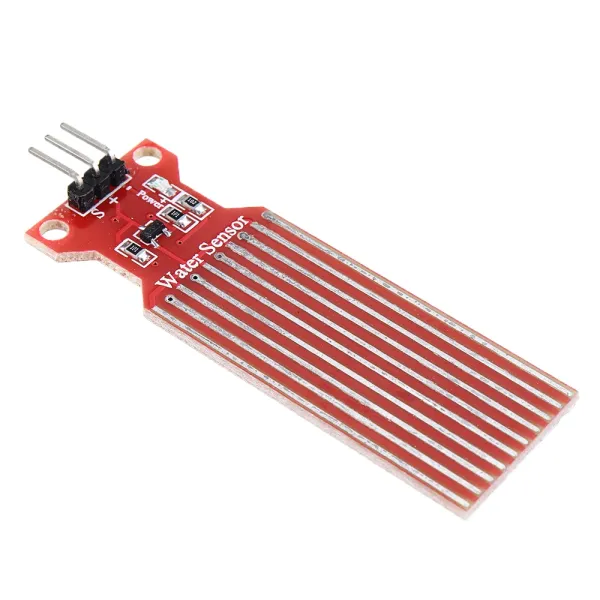

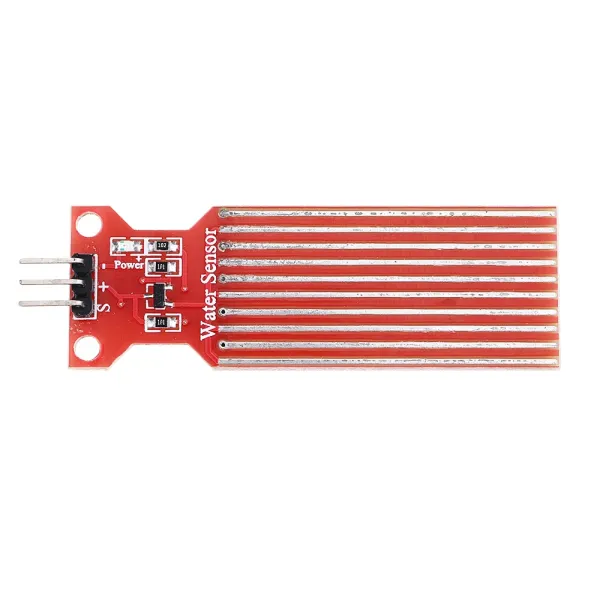

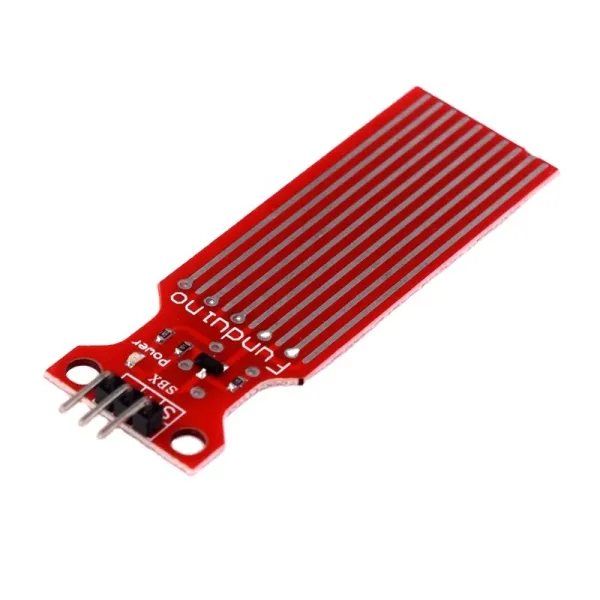

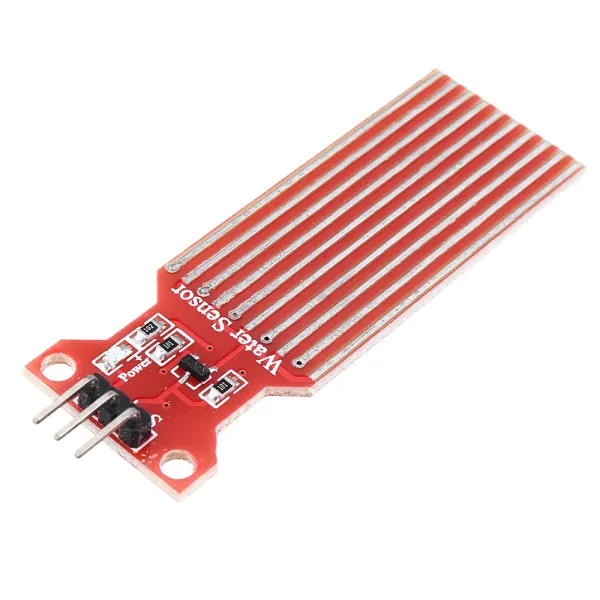

Rain Water Level Sensor
Code: A1.029
Water level and raindrop sensor with a series of parallel exposed traces that converts the amount of water into an analog signal. The analog output can be read directly by a development board, e.g. for a water level alarm, with an operating voltage of DC3-5V.
1,55 €
Includes 24% VAT
- Free shipping over 100,00 €
- Pickup in Patras (by appointment)
- Secure payments
- Technical support
Categories: Liquid / Level
Description
Description:
Water Sensor water level sensor is an easy-to-use, cost-effective high level/drop recognition sensor, which is obtained by having a series of parallel wires exposed traces measured droplets/water volume in order to determine the water level. Easy to complete water to analog signal conversion and output analog values can be directly read development board of FOR to achieve the level alarm effect.
Specifications:
- Product Name: water level sensor
- Operating voltage: DC3-5V
- Operating current: less than 20mA
- Sensor Type: Analog
- Detection Area: 40mmx16mm
- Production process: FR4 double-sided HASL
- Operating temperature:10°-30°
- Humidity: 10% -90% non-condensing

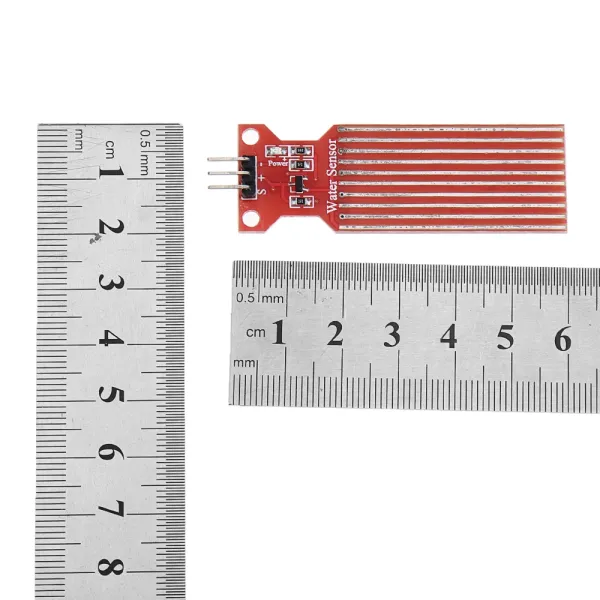

- Product Dimensions: 62mmx20mmx8mm
Specifications
- Password
- A1.029
- Brand
- OEM
- Weight
- 0.01 kg
