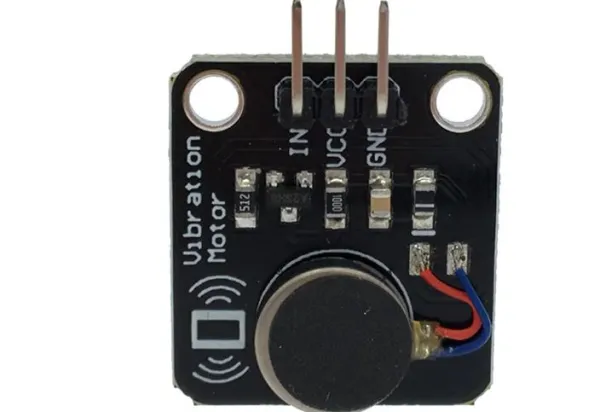

PWM Vibration Motor Switch Sensor
Code: A1.027
Small vibration motor module for silent, non-audible indication: when the input is high, the motor vibrates, just like a phone in silent mode. It operates at 3.0 - 5.3VDC with a digital input and is compatible with UNO R3 and Mega2560.
1,55 €
Includes 24% VAT
- Free shipping over 100,00 €
- Pickup in Patras (by appointment)
- Secure payments
- Technical support
Categories: Integrated Circuits (ICs)
Description
This is a small vibration motor suitable as a non-audible indicator. When the input is high, the motor vibrates, just like your silent mode phone.
Feature:
- Rated voltage: 5.0VDC
- Operating voltage: 3.0 - 5.3VDC
- Rated speed: 9000 rpm minimum
- Rated current: up to 60 mA
- Starting current: up to 90 mA
- Starting voltage: DC3.7V
- Insulation resistance: 10Mohm
- Compatibility: Compatible with UNO R3/ Mega2560
- Great for DIY projects
Technical Specifications

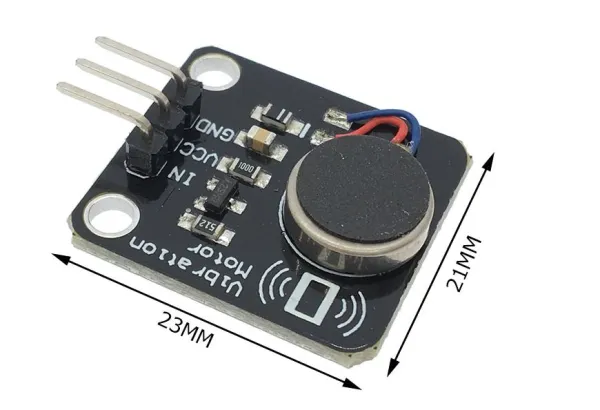

size: 21*23mm
Fixed hole: 3mm
Pitch: 15mm
Voltage: 5V
port: Digital quantity
motor: 10mm diameter, 2.7mm thickness, flat motor
drive: MOS tube high level trigger, low level cutoff
platform: Arduino, MCU
Specifications
- Password
- A1.027
- Μάρκα
- RoarKit
- Weight
- 0.01 kg
