Micro Momentary Tactile Touch Switch DIP P4 Normally Open
Code: E1.026

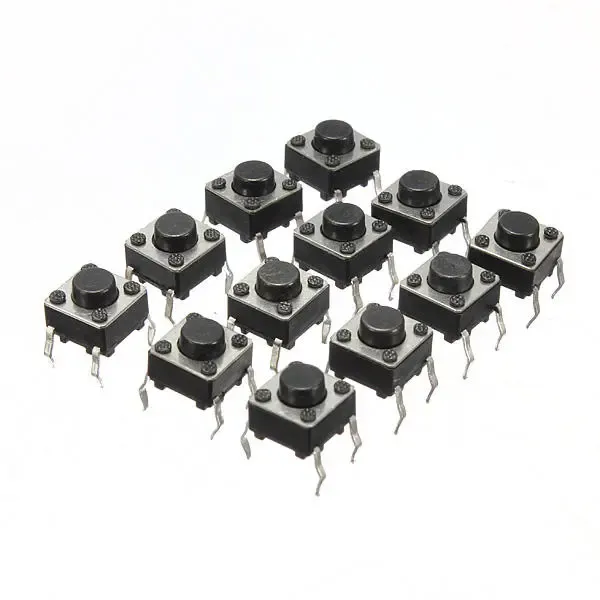

Micro momentary tactile push button switch, normally open, with 4 pins, a round black button and a 6 x 6 x 5mm size for through-hole mounting. Used in electronics projects, with a rated load of DC 12V 50mA.
0,12 €
Includes 24% VAT
- Free shipping over 100,00 €
- Pickup in Patras (by appointment)
- Secure payments
- Technical support
Categories: Tact Switch
Description
Description:
Feature momentary contact, 4 pins, round black push button, through hole mounting, 6 x 6 x 5mm size, etc.
Used in the fields of electronic products, household appliances and more.
High precision mechanism design offers acute operation and long service life.
Specification:
Size: 6 x 6 x 5mm
Type: normally open
Temperature: -30 to +70℃
Withstand voltage: AC 250V
Rated load: DC 12V 50mA
Contact resistance: ≤0.03Ω
Insulation resistance: ≥100MΩ
Specifications
- Password
- E1.026
- Brand
- OEM
- Weight
- 0.01 kg
