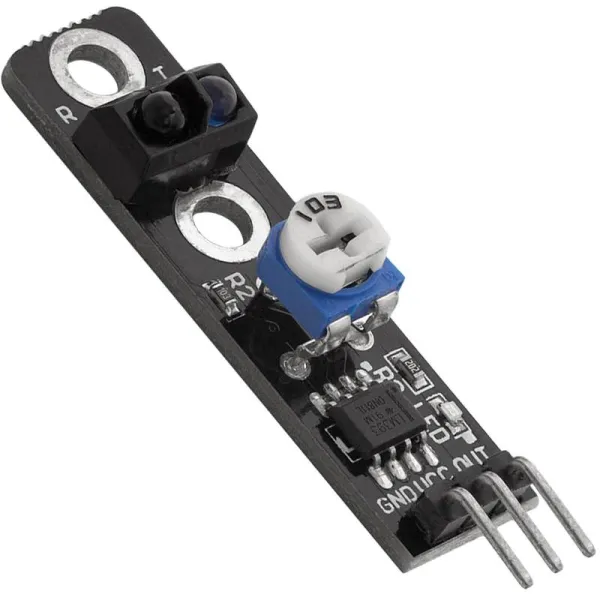

HW-511 TCRT5000 Infrared track sensor
Code: A1.007
HW-511 line tracking sensor based on the TCRT5000 infrared reflective sensor, for line-following robots, with a detection distance of 1mm-8mm. It runs on 3.3V-5V, provides a digital output (0 and 1), and its sensitivity is adjusted with a multi-turn potentiometer.
1,10 €
Includes 24% VAT
- Free shipping over 100,00 €
- Pickup in Patras (by appointment)
- Secure payments
- Technical support
Categories: Proximity / Distance
Description
Product features
Detection distance: 1mm-8mm
Focal length: 2.5mm
Working voltage: 3.3V-5V
Output format digital switch output: (0 and 1)
Use infrared reflective sensor: TCRT5000
The output signal of the comparator is clean, the waveform is good, and the drive capacity is greater than 15mA
Adopt multi-turn precision potentiometer to adjust sensitivity adjustment
Fix bolt holes for easy installation
Specifications
- Password
- A1.007
- Brand
- OEM
- Weight
- 0.03 kg
