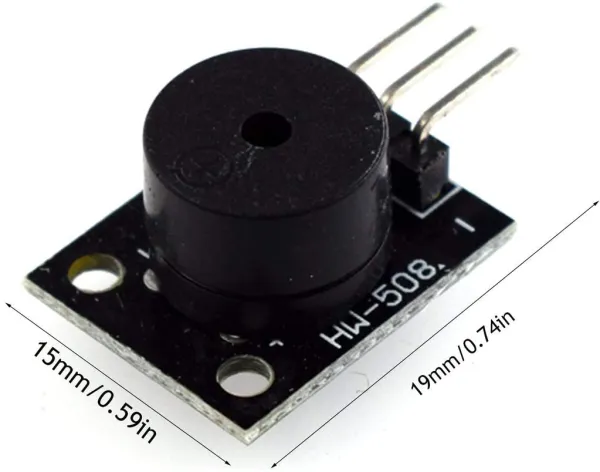

HW-508 Passive buzzer module
Code: A0.024
HW-508 passive buzzer module for producing tones and notes (do, re, mi, fa, sol, la, si) by controlling the frequency. It has no built-in oscillation source, is driven by a 2K-5K square wave and operates at 3.5-5.5V.
0,30 €
Includes 24% VAT
- Free shipping over 100,00 €
- Pickup in Patras (by appointment)
- Secure payments
- Technical support
Categories: Sound / Voice & Touch
Description
Specifications:
Color: Black
Quantity: 1 pc
Working voltage:3.5-5.5V
Working current:<25mA
PCB Dimension:18.5mm x 15mm(LxW)
Passive Buzzer Module Feature:
1.No oscillation source, need square wave (frequency 2K-5K ) to drive.
2.Sound frequency control, you can make a "do re mi fa sol la si" effect.
Specifications
- Password
- A0.024
- Brand
- OEM
- Weight
- 0.01 kg
