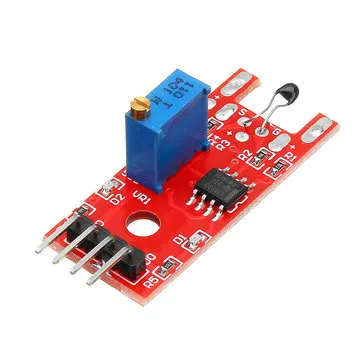

HW-503 Digital Temperature Sensor
Code: A1.005
HW-503 temperature sensor module with an NTC thermistor and LM393 comparator, offering analog and digital outputs for temperature measurement. The digital output threshold is set with a trimmer potentiometer, and the board operates from 3.3V to 5.5V.
0,70 €
Includes 24% VAT
- Free shipping over 100,00 €
- Pickup in Patras (by appointment)
- Secure payments
- Technical support
Categories: Environmental
Description
The HW-503 consist of a of a NTC thermistor, a LM393 dual differential comparator a 3296W trimmer potentiometer, six resistors and two indicator LEDs. The board features an analog and a digital output.
Operating Voltage: 3.3V to 5.5V
Temperature measurement range: -55°C to 125°C
Measurement Accuracy: ±0.5°C
Board Dimensions: 15mm x 36mm
Specifications
- Password
- A1.005
- Brand
- OEM
- Weight
- 0.01 kg
