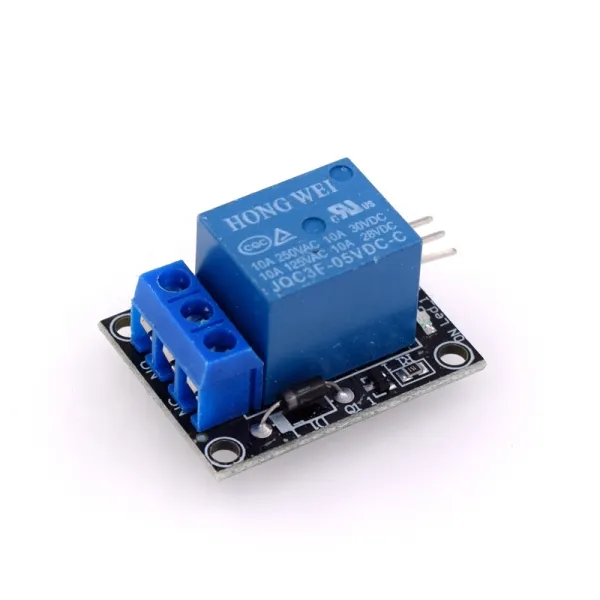

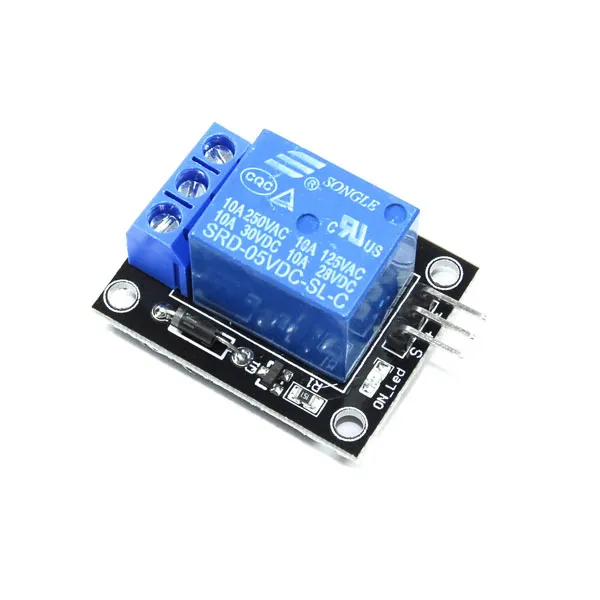

HW-482 5V Relay Module
Code: A0.014
HW-482 5V relay module with a 5V-12V TTL control signal, one normally open (NO) and one normally closed (NC) contact, and indicator LEDs. Use it with microcontroller boards to switch DC or AC loads, including 220V AC loads and home appliances.
1,00 €
Includes 24% VAT
- Free shipping over 100,00 €
- Pickup in Patras (by appointment)
- Secure payments
- Technical support
Categories: Relays
Description
Size: 34*26*17mm
Weight: 14g
TTL control signal: 5V-12V
Product information:
- 5V relay module
- Can be used as a microcontroller development board module, can be used as home appliance control
- TTL control signal of 5V-12V
- Control DC or AC signal, and control 220V AC load.
- There is a normally open and a normally closed contact
- With power indicator
- There is a control indicator light, the suction is bright, the disconnection is not bright
- Transistor drive increases the relay coil to control the high impedance of the foot.
- The control pin has a pull-down circuit to prevent the floating relay from malfunctioning.
Specifications
- Password
- A0.014
- Brand
- OEM
- Weight
- 0.01 kg
