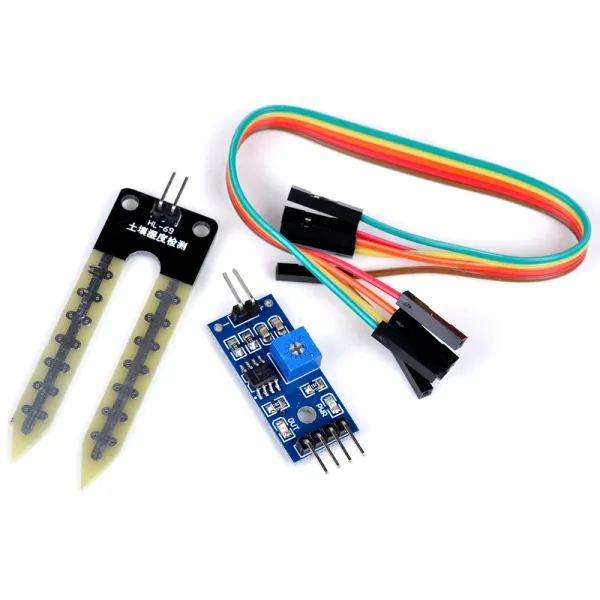

HW-080 Soil Hygrometer / Moisture Detection Module
Code: A0.010
HW-080 module for detecting soil moisture, based on the LM393 comparator with a 3.3V-5V operating voltage. It provides both digital and analog outputs, adjustable sensitivity via a potentiometer, and indicator LEDs for power and digital output.
1,90 €
Includes 24% VAT
- Free shipping over 100,00 €
- Pickup in Patras (by appointment)
- Secure payments
- Technical support
Categories: Sensors
Description
Adjustable sensitivity adjust the digital potentiometer (shown in blue)
Operating voltage 3.3V-5V
Dissipation Power: 1W-6W
Operating Temperature: -40°C ~ 125°C

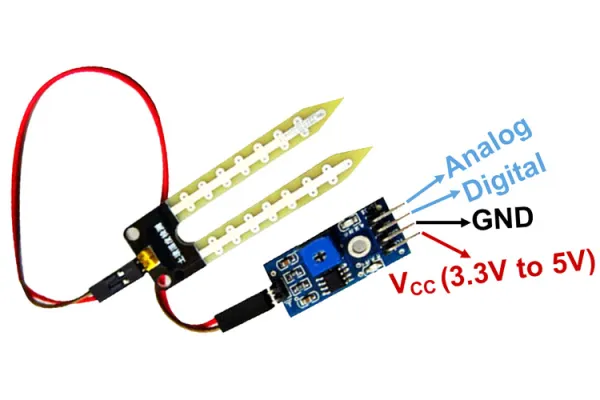

Dual output mode. Digital output and analog output (more accurate).
A fixed bolt hole for easy installation
Power indicator (red) and digital switching output indicator (green)
Using LM393 comparator chip, stable
Specifications
- Password
- A0.010
- Brand
- OEM
- Weight
- 0.03 kg
