ESP8266 NodeMcu CH340G V3
Code: B0.005
ESP8266 NodeMcu V3 development board with an ESP-12E WiFi module and a CH340G chip instead of the CP2102, for IoT projects. It is powered and programmed via micro USB, and its 2 x 15p headers give access to GPIO, SPI, UART, ADC and power pins.
7,35 €
Includes 24% VAT
- Free shipping over 100,00 €
- Pickup in Patras (by appointment)
- Secure payments
- Technical support
Categories: ESP8266
Description
WiFi Module – ESP-12E
Uses CH340G replace the CP2102
USB: micro USB port for power, programming and debugging

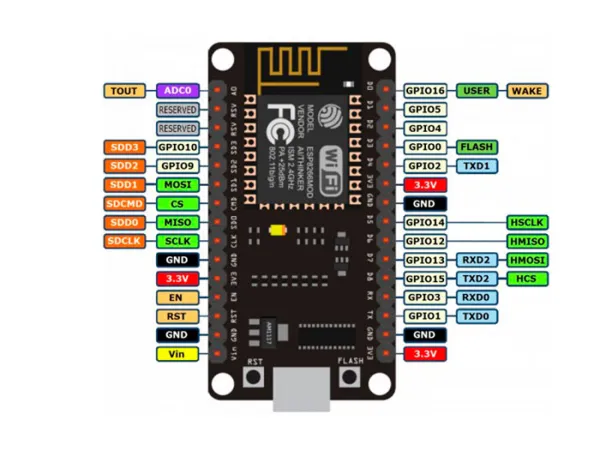

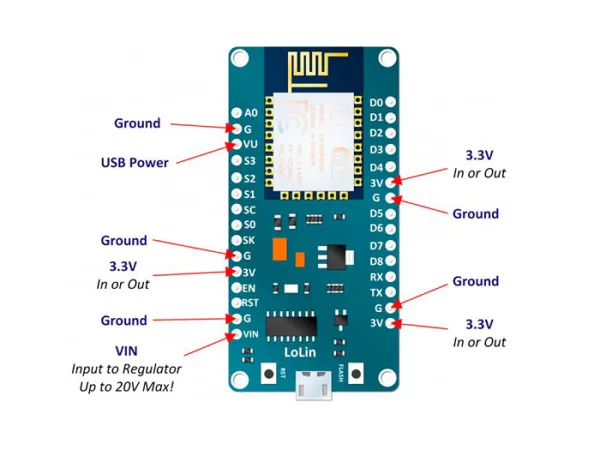

Headers: 2 x 15p 2.54mm pitch (with access to GPIOs, SPI, UART, ADC, and power pins)
Buttons: Reset, Flash
Power: 5V
Size: 50 x 25 x 14 mm
Specifications
- Password
- B0.005
- Brand
- OEM
- Weight
- 0.01 kg
