Display 0.91" 128x32 OLED Module
Code: A1.030

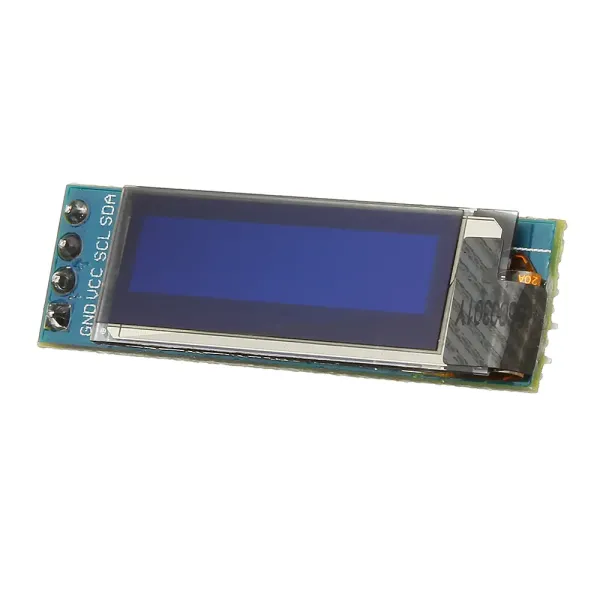

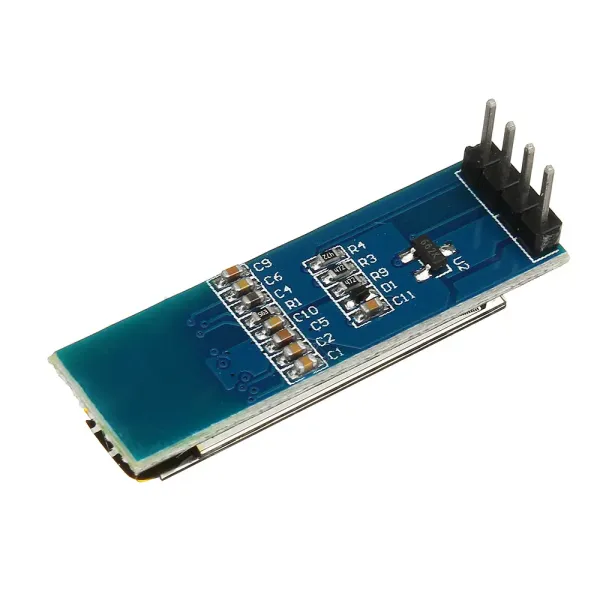

0.91" OLED display with 128 x 32 resolution, white pixels and SSD1306 driver, for showing text and readings in electronics projects. It needs no backlight, connects via IIC (I2C) and runs on 3.3 ~5V DC.
4,40 €
Includes 24% VAT
- Free shipping over 100,00 €
- Pickup in Patras (by appointment)
- Secure payments
- Technical support
Categories: Displays
Description
Specifications:
1.OLED display, no need backlight, self-illumination,
2.The display performance is better than the traditional LCD display, also lower consumption.
3.Driver IC: SSD1306
4.Size: 0.91 inch OLED
5.Resolution: 128 x 32
6.IIC interface
7.Display Color: white
8.Pin Description:
GND: Power Ground
VCC: Power + (DC 3.3 ~5v)
SCL: Clock Line
SDA: Data Line
Specifications
- Password
- A1.030
- Μάρκα
- GeekCreit
- Weight
- 0.01 kg
