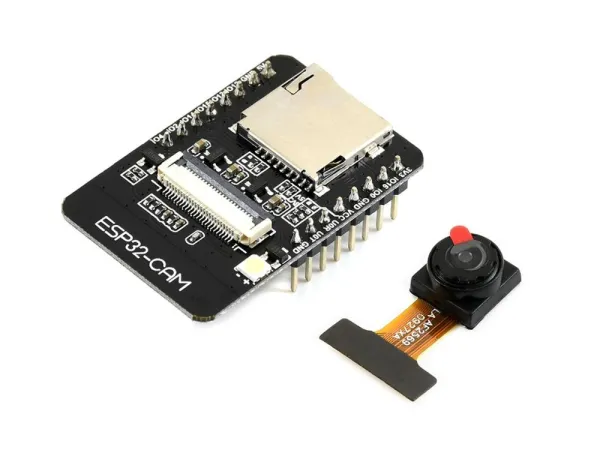

Camera Module Based on ESP32

SPECIFICATIONS

• WIFI module: ESP-32S Processor: ESP32-D0WD
• Built-in Flash: 32Mbit
• RAM: Internal 512KB + External 4M PSRAM
• Antenna: Onboard PCB antenna
• WiFi protocol: IEEE 802.11 b/g/n/e/i
• Bluetooth: Bluetooth 4.2 BR/EDR and BLE
• WIFI mode: Station / SoftAP / SoftAP+Station
• Security: WPA/WPA2/WPA2-Enterprise/WPS
• Output image format: JPEG (OV2640 support only), BMP, GRAYSCALE
• Supported TF card: up to 4G
• Peripheral interface: UART/SPI/I2C/PWM
• IO port: 9
• UART baudrate rate: default 115200bps
• Power supply: 5V
• Operating temperature: -20 ℃ ~ 85 ℃
• Storage environment: -40 ℃ ~ 90 ℃, <90%RH

• Transmitting power: 802.11b: 17 ±2dBm(@11Mbps) 802.11g: 14 ±2dBm(@54Mbps) 802.11n: 13 ±2dBm(@HT20,MCS7)
• Receiving sensitivity: CCK,1Mbps: -90 dBm CCK,11Mbps: -85 dBm 6Mbps(1/2 BPSK): -88 dBm 54Mbps(3/4 64-QAM): -70 dBm HT20,MCS7(65Mbps, 72.2Mbps): -67 dBm
• Power consumption: Flash off: 180mA@5V Flash on and brightness max: 310mA@5V Deep-Sleep: as low as 6mA@5V Modern-Sleep: as low as 20mA@5V Light-Sleep: as low as 6.7mA@5V
• Dimensions: 40.5mm x 27mm x 4.5mm

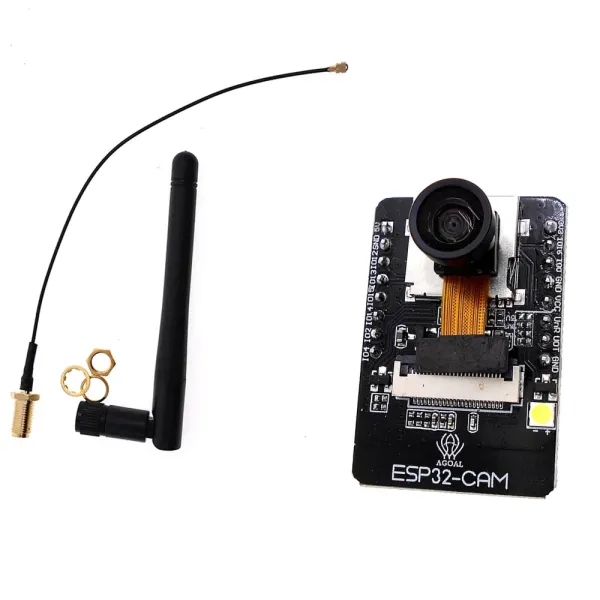

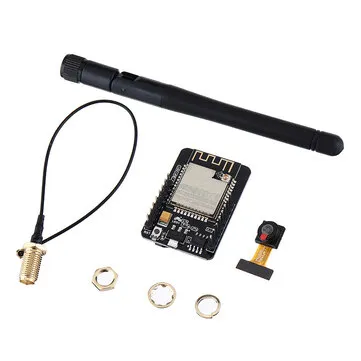

The package includes:

1x: ESP32

1x: Cam

1x: Antenna
